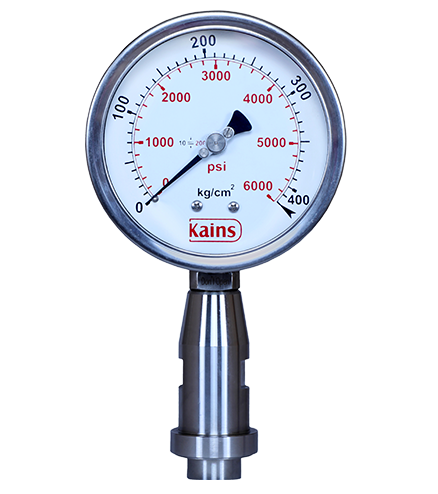

Homogenizer diaphragm gauge are manufactured to meet the requirement of various industrial process measuring applications. kains Homogenizer diaphragm gauges are widely used in milk homogenizers, high pressure pumps, grease pumps, chemical industries, petrochemical industries, milk dairies, other food processing Industries, etc...
|
Title |
Homogenizer diaphragm gauge |
|
Model |
KHD |
|
Available nominal sizes |
63 mm (2 ½”), 100mm (4”) 150 mm (6”) |
|
Sealed size* |
Kains general standard / customized for OEMs (consult factory for details) |
|
Available |
only in pressure |
|
Minimum pressure range |
0 – 100 bar / kg/cm2 |
|
Maximum pressure range |
0 to 2000 bar / kg/cm2 |
|
Diaphragm material |
AISI St.St.316L |
|
Stem |
AISI St.St.316L |
|
Clamp |
Standard or customized mounting clamps are available |
|
Sealed assembly |
hermetically sealed |
|
Diaphragm extension |
By means of flexible St. St capillary with plain armoured / Teflon shielded |
