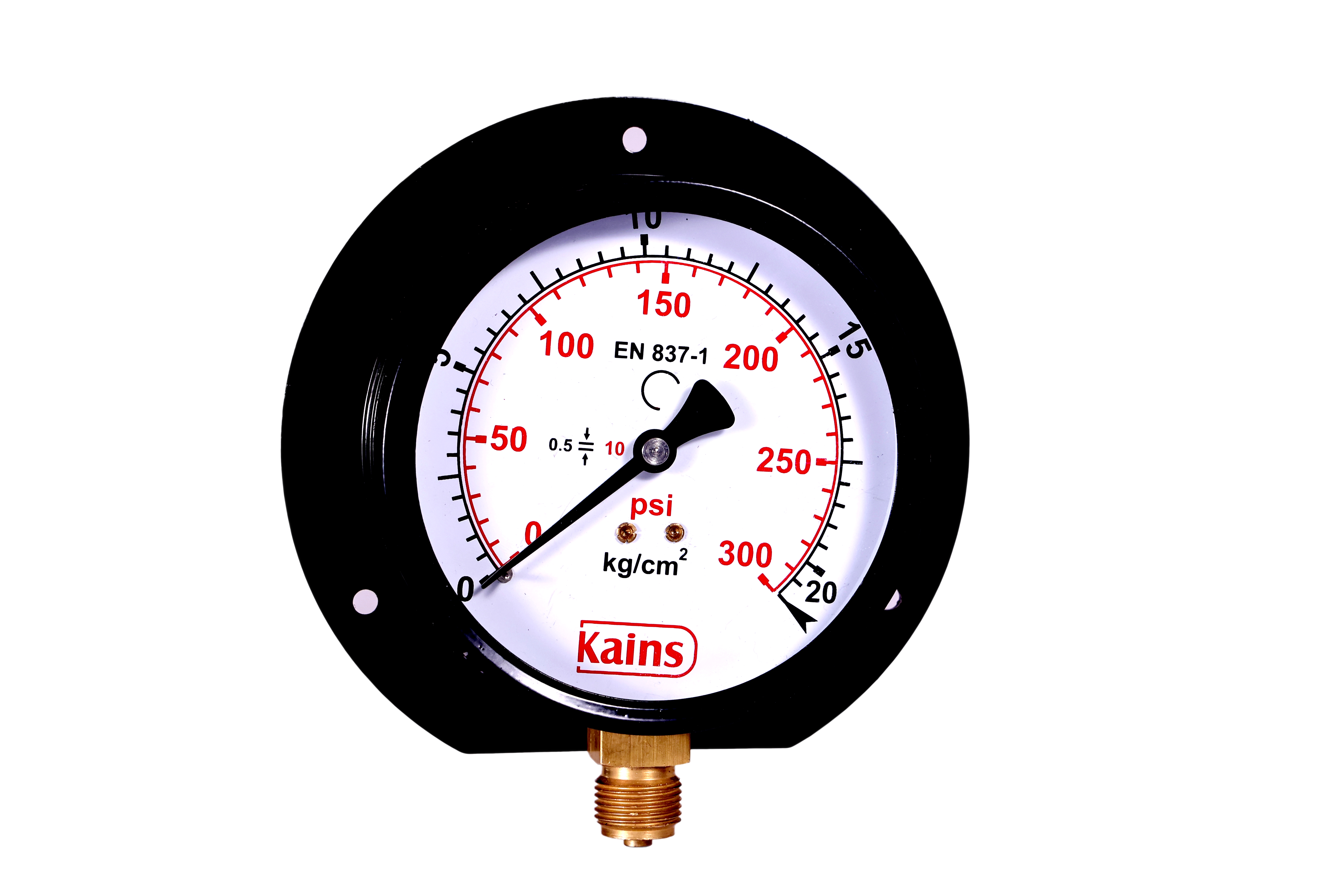

Kains is the original manufacturer for commercial quality pressure gauges specially for compressed air line. G01 011 model pressure gauges are manufactured with MS black coated case and bezel and brass measuring system. We can supply these gauges with customised logo for OEMs.
|
General Specification |
|
|
Reference Standard |
EN – 837 / IS 3624-1987 / ASME |
|
Model |
G01 011 |
|
Application |
Air/ water/ oil / general utility |
|
Type |
Utility |
|
Nominal Diameter |
1 1/2" (40 mm) 2” (50 mm) 2 1/2” (63 mm) 4” (100 mm) 6" (150 mm) |
|
Case Material |
MS Black / colour coated |
|
Bezel Material |
MS Black / colour coated |
|
Bezel fitting |
Pressed fit |
|
Stem/ Socket Material |
Brass. |
|
Sensing Element |
Brass |
|
Joint |
Soldering |
|
Movement |
Brass |
|
Pointer |
Black Aluminium - |
|
Dial |
White coated Aluminium |
|
Marking |
Black ‘or’ Black and red combination for dual scale |
|
Scale |
Single / Dual |
|
Standard Unit |
kg/cm2 with psi (All other standard engineering units are available on request) |
|
Mounting |
Please refer the mounting chart |
|
Thread |
1/8" / 1/4” / 3/8” NPT / BSPP / BSPT |
|
Window |
Glass |
|
Available in |
Pressure / Compound / Vacuum |
|
Pressure Ranges |
Vacuum, 0-1up to 40 kg/cm2 / bar |
|
Over Pressure |
125% FS Short time |
|
Case filling liquid |
N A |
|
Accuracy |
+/- 2% / 3 % of FSD |
|
Additional Fitment |
Optional* |
|
Calibration Certificate |
Factory calibration certificate shall be provided |
|
Material TC |
Shall be provided on request |
