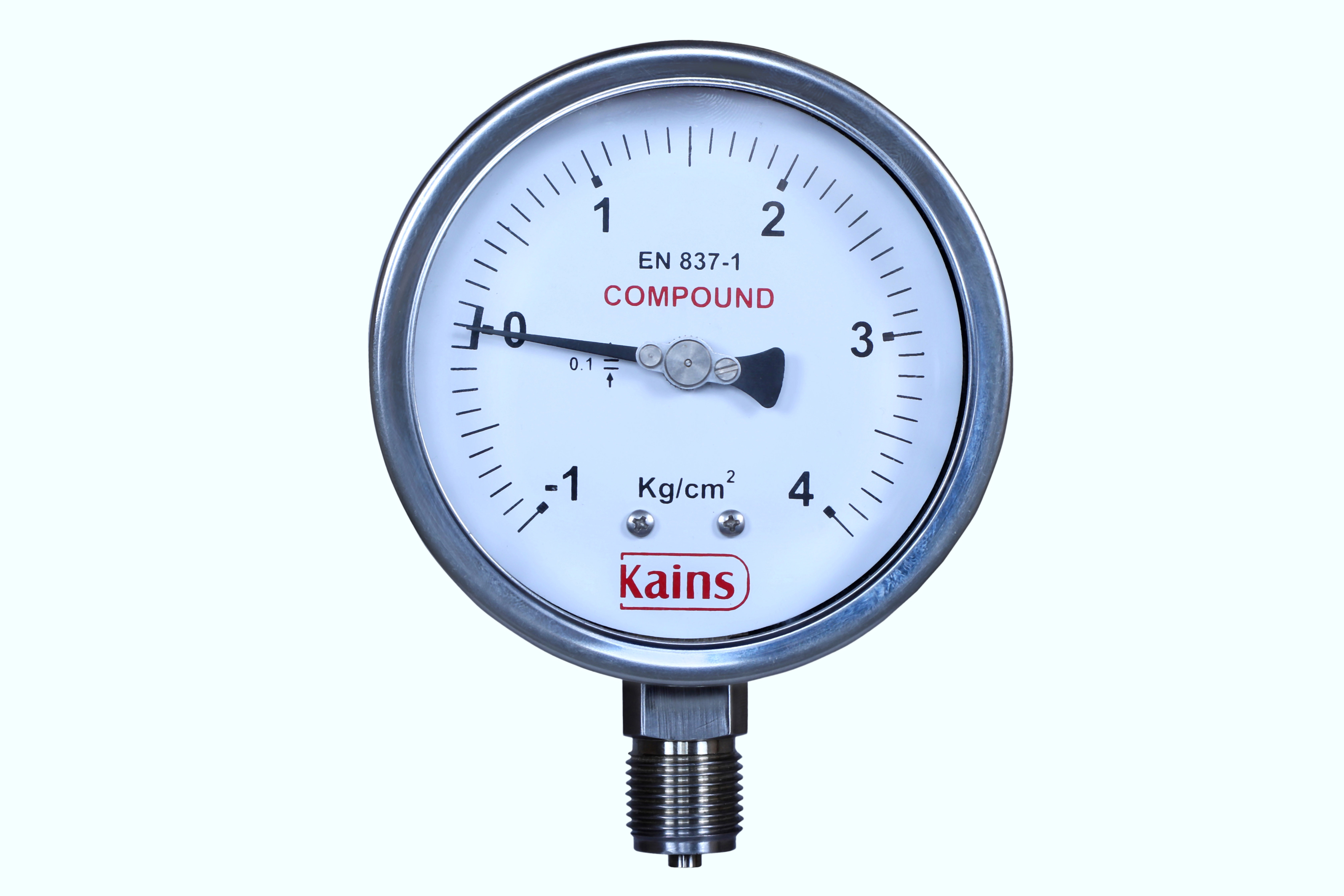

Compound pressure gauegs are used for negetive and positive pressure meassurement. It is used widely for general industrial process pressure measurement. Compound gauges are available in G31 model Bourdon tyoe compount pressure gauges are manufactured with St. St.304 case and bezel and SS 316 / 316L wetted parts. Available in weather proof and glycerine filled…
General Specification |
|
Reference Standard |
EN – 837 / IS 3624-1987 / ASME |
Model |
G 31 |
Application |
Industrial process pressure measurement |
Type |
Weather proof |
Nominal Diameter |
4” (100 mm) 6” (150 mm) |
Case Material |
Stainles Steel 304 |
Bezel Material |
Stainless Steel 304 |
Bezel fitting |
Bayonet Type |
Stem/ Socket Material |
316St.St./ St. St. 316L |
Sensing Element |
316 St. St / 316L St.St Bourdon tube |
Joint |
Argon arc welded |
Movement |
SS304 |
Pointer |
Black Aluminium - |
Dial |
White coated Aluminium |
Marking |
Black ‘or’ Black and red combination for dual scale |
Scale |
Single / Dual |
Standard Unit |
kg/cm2 / kg/cm2 with psi (All other standard engineering units are available on request) |
Mounting |
Please refer the mounting chart |
Thread |
3/8” / ½” NPT / BSPP / BSPT; M 20 X 1.5 |
Window |
Polycarbonate / Acrylic / Toughened glass |
Available in |
Pressure / Compound / Vacuum |
Minimum Range |
-1 to 0.6 kg/cm2 / bar |
Maximum range |
-1 to 40 kg/cm2 / bar |
Over Pressure |
130% FS Short time |
Case filling liquid |
Glycerine / non-conductive fluid for Electric contact |
Accuracy |
+/- 1% ‘or’1.6% of FSD |
Additional Fitment |
Optional* |
Calibration Certificate |
Factory calibration certificate shall be provided |
Additional Fitment Diaphragm Sealed |
|
Compact Diaphragm |
Flanged Diaphragm Sealed |
Tri Clover Diaphragm |
I Section Flanged Diaphragm |
Union Nut Diaphragm |
Threaded Diaphragm |
Chemical Sealed |
High Pressure Diaphragm Sealed |
Homogenizer Diaphragm Sealed |
|
Additional Fitment Accessories |
|
Snubber/ Dampner |
Isolation Valve / needle valve |
Siphon |
Gauge saver/ Over Pressure protector |
Gauge cock |
Cooling tower |
Siphon with gauge cock |
|
